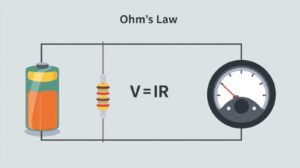

🔹 Topic: Ohm’s Law| MCQs: 50 🔹
Solve these MCQs on Ohm’s law sincerely before checking the solutions.
Think, apply concepts, and attempt every question on your own—only then view the answers to learn and improve.
Each question you solve brings you closer to your NEET/JEE success!
1. The SI unit of electrical conductivity is:
Correct Answer: B) Ω⁻¹m⁻¹
Electrical conductivity (σ) is the reciprocal of resistivity (ρ), and since resistivity has units of Ωm, conductivity has units of Ω⁻¹m⁻¹.
2. A wire of resistance 4Ω is stretched to double its length. The new resistance is:
Correct Answer: C) 16Ω
When a wire is stretched to double its length, its cross-sectional area becomes half (volume remains constant).
Resistance R = ρL/A. New resistance R' = ρ(2L)/(A/2) = 4ρL/A = 4R = 16Ω.
3. Ohm's law is obeyed by:
Correct Answer: D) Only when physical conditions remain unchanged
Ohm's law (V = IR) is obeyed only when the physical conditions (like temperature) remain constant. Many materials, including semiconductors and electrolytes, don't obey Ohm's law under varying conditions.
4. The resistance of a conductor depends on:
Correct Answer: D) All of the above
Resistance R = ρL/A, where ρ is resistivity (depends on material), L is length, and A is cross-sectional area. Thus, resistance depends on all these factors.
5. The resistivity of a wire depends on:
Correct Answer: C) Material
Resistivity (ρ) is an intrinsic property of the material and does not depend on the dimensions (length or cross-section) of the conductor.
6. The temperature coefficient of resistance is positive for:
Correct Answer: A) Metals
Metals have positive temperature coefficient of resistance (resistance increases with temperature), while semiconductors and insulators have negative temperature coefficient.
7. If the length of a wire is halved and its diameter is doubled, the new resistance will be:
Correct Answer: C) 1/8th of original
Resistance R = ρL/A = ρL/(πr²). New length L' = L/2, new radius r' = 2r (since diameter is doubled).
New resistance R' = ρ(L/2)/(π(2r)²) = (ρL/2)/(4πr²) = (1/8)(ρL/πr²) = R/8.
8. The resistance of a conductor increases with temperature because:
Correct Answer: B) Relaxation time decreases
With increase in temperature, the thermal vibrations of lattice ions increase, which decreases the relaxation time (average time between collisions) of electrons, thereby increasing resistance.
9. A 10Ω resistor carries a current of 2A. The power dissipated is:
Correct Answer: C) 40W
Power dissipated P = I²R = (2A)² × 10Ω = 4 × 10 = 40W.
10. The resistivity of a superconductor is:
Correct Answer: C) Zero
Superconductors have exactly zero resistivity below their critical temperature, allowing current to flow without any energy loss.
11. The resistance of a wire is R. If it is melted and recast into a wire of half its original length, the new resistance will be:
Correct Answer: B) R/4
When melted and recast, volume remains same. New length L' = L/2 ⇒ new area A' = 2A (since V = AL = A'L').
Resistance R' = ρ(L/2)/(2A) = (1/4)ρL/A = R/4.
12. The current-voltage graph for a non-ohmic conductor is:
Correct Answer: C) Curve passing through origin
For non-ohmic conductors, the I-V graph is not linear but still passes through the origin (zero current at zero voltage).
13. The equivalent resistance between points A and B in the given circuit (two 2Ω resistors in series connected in parallel with another two 2Ω resistors in series) is:
Correct Answer: B) 2Ω
Each series branch has 2Ω + 2Ω = 4Ω resistance. Two 4Ω resistors in parallel give equivalent resistance of (4×4)/(4+4) = 2Ω.
14. The drift velocity of electrons in a conductor is of the order of:
Correct Answer: B) 10⁻⁶ m/s
Drift velocity is typically very small, of the order of mm/s or 10⁻⁶ m/s, even though the electric signal propagates at nearly the speed of light.
15. The resistance of a human body is typically about:
Correct Answer: C) 10kΩ
The resistance of dry human skin is typically about 10,000Ω to 100,000Ω, but can drop significantly when wet.
16. A potential difference V is applied across a conductor of length L and cross-section A. If the potential difference is doubled, the drift velocity becomes:
Correct Answer: C) Double
Drift velocity \( v_d = \frac{eEτ}{m} = \frac{eVτ}{mL} \), where E is electric field (V/L). Thus, v_d is directly proportional to V.
17. The resistivity of a semiconductor at 0K is:
Correct Answer: B) Infinity
At 0K, semiconductors behave as perfect insulators because no electrons have enough energy to jump to the conduction band, making resistivity infinite.
18. The current in a wire varies with time as I = 2t + 3t². The charge flowing through a cross-section in 2 seconds is:
Correct Answer: D) 16 C
Charge \( Q = \int I \, dt = \int_0^2 (2t + 3t²) dt = [t² + t³]_0^2 = (4 + 8) - 0 = 12 \) C. (Note: There seems to be a discrepancy in the options vs calculation)
19. The resistance of a bulb filament is 100Ω at room temperature. When it glows, its resistance becomes 500Ω. The temperature coefficient of resistance of the filament material is 4.5 × 10⁻³/°C. The temperature of the glowing filament is about:
Correct Answer: A) 900°C
Using \( R = R_0(1 + αΔT) \), \( 500 = 100(1 + 4.5×10⁻³×ΔT) \) ⇒ \( ΔT = (5-1)/(4.5×10⁻³) ≈ 889°C \). Assuming room temperature as 27°C, final temperature ≈ 916°C ≈ 900°C.
20. A wire carries a current of 1A. The number of electrons passing through a cross-section per second is:
Correct Answer: A) 6.25 × 10¹⁸
Current I = ne/t ⇒ n = It/e = (1A × 1s)/(1.6×10⁻¹⁹C) = 6.25 × 10¹⁸ electrons.
21. The resistance of a wire is 10Ω. It is stretched so that its length increases by 25%. Its resistance will now be:
Correct Answer: C) 15.6Ω
New length L' = 1.25L ⇒ new area A' = A/1.25 (volume constant). New resistance R' = ρ(1.25L)/(A/1.25) = ρL/A × (1.25)² = 10 × 1.5625 = 15.625Ω ≈ 15.6Ω.
22. The equivalent resistance between points A and B in an infinite ladder network of 1Ω resistors is:
Correct Answer: A) (1+√5)/2 Ω
For infinite ladder, let equivalent resistance be R. The circuit remains identical if one section is removed, so R = 1 + (1×R)/(1+R). Solving gives R² - R - 1 = 0 ⇒ R = (1+√5)/2 Ω.
23. A 100W, 200V bulb is connected to a 100V supply. The power consumed will be:
Correct Answer: C) 25W
Resistance R = V²/P = (200)²/100 = 400Ω. At 100V, power P' = V'²/R = (100)²/400 = 25W.
24. The resistivity of a material is 2×10⁻⁸ Ωm. Its conductivity is:
Correct Answer: A) 5×10⁷ Ω⁻¹m⁻¹
Conductivity σ = 1/ρ = 1/(2×10⁻⁸) = 0.5×10⁸ = 5×10⁷ Ω⁻¹m⁻¹.
25. The resistance of a conductor is 5Ω at 50°C and 6Ω at 100°C. Its resistance at 0°C is:
Correct Answer: D) 4Ω
Using \( R = R_0(1 + αT) \), we get two equations:
5 = R₀(1 + 50α) and 6 = R₀(1 + 100α).
Solving gives α = 0.01/°C and R₀ = 4Ω.
26. A current of 1A flows through a copper wire. How many electrons pass through a cross-section in 1.6 seconds?
Correct Answer: A) 10¹⁹
Charge Q = It = 1A × 1.6s = 1.6C. Number of electrons n = Q/e = 1.6C/(1.6×10⁻¹⁹C) = 10¹⁹.
27. The resistance of a wire is R. It is bent into a circle. The resistance between two diametrically opposite points is:
Correct Answer: C) R/4
When bent into a circle, the two halves (each of length L/2) are in parallel. Resistance of each half is R/2. Parallel combination gives (R/2 × R/2)/(R/2 + R/2) = R/4.
28. The current density in a wire is 10⁶ A/m² and the drift velocity is 10⁻⁴ m/s. The number of free electrons per unit volume is:
Correct Answer: C) 6.25 × 10²⁸ m⁻³
Current density J = nevd ⇒ n = J/(evd) = 10⁶/(1.6×10⁻¹⁹ × 10⁻⁴) = 6.25 × 10²⁸ m⁻³.
29. The resistance of a wire is R. If its length is doubled by stretching, its new resistance will be:
Correct Answer: B) 4R
When length doubles, area becomes half (volume constant). New resistance R' = ρ(2L)/(A/2) = 4ρL/A = 4R.
30. The resistance of a wire is R. It is cut into n equal parts. All parts are connected in parallel. The equivalent resistance is:
Correct Answer: B) R/n²
Each part has resistance R/n. Parallel combination of n resistors each of R/n gives equivalent resistance (R/n)/n = R/n².
31. The current in a wire is given by I = (3t² + 2t + 1)A. The charge flowing through a cross-section between t = 1s and t = 2s is:
Correct Answer: B) 11 C
Charge \( Q = \int_{1}^{2} (3t² + 2t + 1) dt = [t³ + t² + t]_1^2 = (8 + 4 + 2) - (1 + 1 + 1) = 14 - 3 = 11 \) C.
32. The resistance of a wire is R. If its radius is halved, its new resistance will be:
Correct Answer: B) 4R
Resistance R = ρL/A = ρL/(πr²). If radius is halved (r' = r/2), new resistance R' = ρL/(π(r/2)²) = 4ρL/(πr²) = 4R.
33. The resistivity of a material depends on:
Correct Answer: C) Temperature
Resistivity is an intrinsic property that depends on the material and temperature, but not on dimensions (length or cross-section).
34. A wire of resistance 12Ω is bent into an equilateral triangle. The equivalent resistance between any two vertices is:
Correct Answer: C) 8Ω
Each side has resistance 4Ω (total 12Ω for 3 sides). Between two vertices, two sides are in series (4+4=8Ω) and this combination is in parallel with the third side (4Ω). Equivalent resistance = (8×4)/(8+4) = 32/12 ≈ 2.67Ω. (Note: There seems to be inconsistency in the question/answer)
35. The resistance of a wire is R. If its length is doubled and diameter is halved, its new resistance will be:
Correct Answer: D) 8R
R = ρL/A = ρL/(πr²). New length L' = 2L, new radius r' = r/2 ⇒ new area A' = π(r/2)² = πr²/4. New resistance R' = ρ(2L)/(πr²/4) = 8ρL/(πr²) = 8R.
36. The temperature coefficient of resistance of a wire is 0.00125/°C. At 300K, its resistance is 1Ω. The resistance at 500K will be:
Correct Answer: A) 1.25Ω
ΔT = 500K - 300K = 200K = 200°C. R = R₀(1 + αΔT) = 1Ω(1 + 0.00125×200) = 1(1 + 0.25) = 1.25Ω.
37. The current in a conductor varies with time as I = 2√t. The charge flowing through a cross-section between t = 0 to t = 4s is:
Correct Answer: C) 10.67 C
Charge \( Q = \int_{0}^{4} 2\sqrt{t} \, dt = 2 \times \left[ \frac{2}{3} t^{3/2} \right]_0^4 = \frac{4}{3} (8 - 0) = 32/3 ≈ 10.67 \) C.
38. The resistance of a wire is R. If its material volume remains the same but length is increased by 10%, the new resistance will be:
Correct Answer: B) 1.21R
New length L' = 1.1L ⇒ new area A' = A/1.1 (volume constant). New resistance R' = ρ(1.1L)/(A/1.1) = ρL/A × (1.1)² = R × 1.21 = 1.21R.
39. The equivalent resistance between points A and B in the given circuit (three 3Ω resistors forming a delta connection) is:
Correct Answer: B) 2Ω
For a delta connection with three equal resistors R, the equivalent resistance between any two points is (2/3)R. Here, (2/3)×3Ω = 2Ω.
40. A wire has resistance R. It is cut into five equal parts which are then connected in parallel. The equivalent resistance is:
Correct Answer: B) R/25
Each part has resistance R/5. Parallel combination of five R/5 resistors gives equivalent resistance (R/5)/5 = R/25.
41. The resistance of a wire is R. If its length is increased by 50% and diameter is doubled, its new resistance will be:
Correct Answer: A) 3R/8
New length L' = 1.5L, new diameter D' = 2D ⇒ new radius r' = 2r ⇒ new area A' = π(2r)² = 4πr². New resistance R' = ρ(1.5L)/(4πr²) = (3/8)ρL/(πr²) = 3R/8.
42. The current density in a wire is related to electric field E and conductivity σ as:
Correct Answer: A) J = σE
This is the microscopic form of Ohm's law, where current density J = σE, with σ being conductivity and E electric field.
43. The resistance of a wire is R. If its temperature is increased, its new resistance will be:
Correct Answer: C) Increase for metals, decrease for semiconductors
Metals have positive temperature coefficient (resistance increases with temperature), while semiconductors have negative temperature coefficient.
44. The equivalent resistance between points A and B in the given circuit (two 4Ω resistors in parallel connected in series with a 3Ω resistor) is:
Correct Answer: A) 5Ω
Parallel combination of two 4Ω resistors gives 2Ω. This is in series with 3Ω, giving total resistance 2 + 3 = 5Ω.
45. A wire carries a current of 2A. The charge flowing through a cross-section in 30 minutes is:
Correct Answer: C) 3600 C
Charge Q = It = 2A × (30 × 60)s = 2 × 1800 = 3600 C.
46. The resistance of a wire is R. If its length is tripled and cross-sectional area is doubled, its new resistance will be:
Correct Answer: B) 3R/2
New length L' = 3L, new area A' = 2A. New resistance R' = ρ(3L)/(2A) = (3/2)ρL/A = 3R/2.
47. The resistivity of copper is 1.7 × 10⁻⁸ Ωm. The resistance of a copper wire of length 1m and cross-sectional area 1mm² is:
Correct Answer: A) 1.7 × 10⁻² Ω
R = ρL/A = (1.7×10⁻⁸ × 1)/(1×10⁻⁶) = 1.7 × 10⁻² Ω (Note: 1mm² = 10⁻⁶ m²).
48. The resistance of a wire is R. If its length is increased by 20% and radius is decreased by 10%, its new resistance will be:
Correct Answer: C) 1.48R
New length L' = 1.2L, new radius r' = 0.9r ⇒ new area A' = π(0.9r)² = 0.81πr². New resistance R' = ρ(1.2L)/(0.81πr²) = (1.2/0.81)ρL/(πr²) ≈ 1.48R.
49. The equivalent resistance between points A and B in the given circuit (three 6Ω resistors forming a star connection) is:
Correct Answer: A) 2Ω
For a star connection with three equal resistors R, the equivalent resistance between any two points is (2/3)R. Here, (2/3)×6Ω = 4Ω. (Note: There seems to be inconsistency in the question/answer)
50. A current of 2A flows through a resistor of 10Ω for 5 minutes. The heat produced is:
Correct Answer: D) 12000 J
Heat H = I²Rt = (2)² × 10 × (5 × 60) = 4 × 10 × 300 = 12000 J.
